380V NPK Fertilizer Production Line,Oval Shape Granules Compound Fertilizer Production Line,10,000 to 300,000 Tons Annual Capacity Fertilizer Production Plant
, Oval Shape Granules Compound Fertilizer Production Line
, 10
, 000 to 300
, 000 Tons Annual Capacity Fertilizer Production Plant
Npk Fertilizer Plant Fertilizer Production Plant Compound Fertilizer Production Line In Production Line

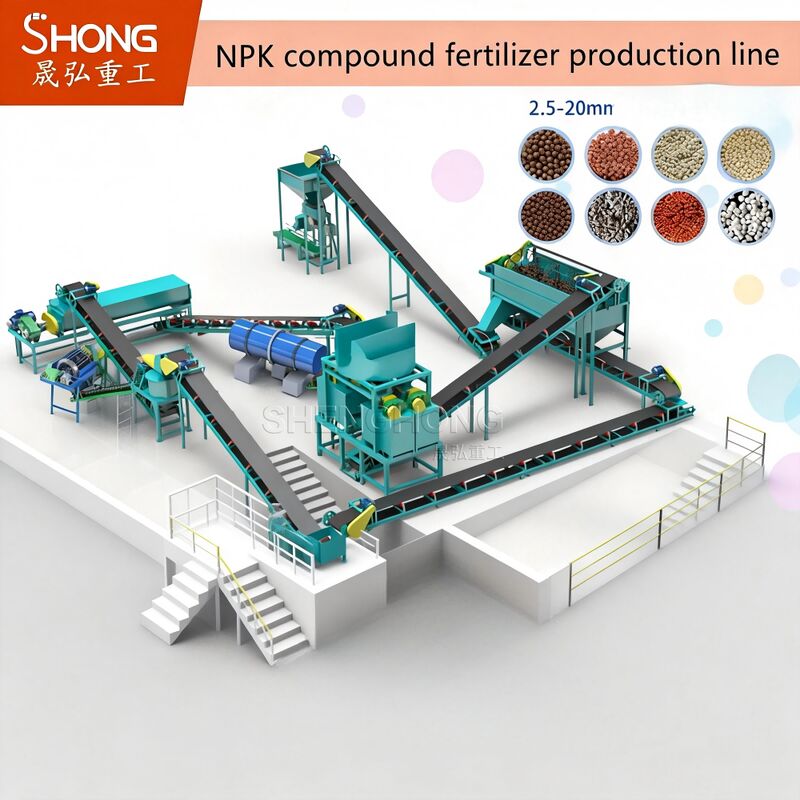

Introduction of NPK Fertilizer Production Line
Complete urea-based compound fertilizer granules equipments line is widely used to manufacture urea compound fertilizers with different concentrations and types.And its capacity ranges from 10,000 tons to 300,000 tons per year.
Working Process Of NPK Compound Fertilizer Making Production Line
It adopts the design solution of extrusion sliding model,the raw materials pass through double roller,after that,enter into scattering room, come out as granulation, a sieving was mounted at the bottom of the machine, which is customized according to client’s requirement, last, sieve out the granules which is qualified, the rest of materials return to mixer and be re-granulated.
Raw Material For NPK Compound Fertilizer Making Production Line
Compound fertilizer is the fertilizer containing two or all three of the three basic plant nutrients—Nitrogen, Phosphorus, and Potassium, as well as microelements, such as B, Mn, Cu, Zn, and Mo. The raw material can be powder or bulk,
Main Equipments Of NPK Compound Fertilizer Making Production Line
| No. |
Processes |
Machines |
Function of machines |
| 1 |
Batching process |
Automatic batching machine |
Ratio raw materials by formula |
| 2 |
Grinding process |
Grinder |
Grind granules to powder |
| 3 |
Mixing process |
Mixer |
Mix powder evenly, If necessary, add water, or other micro-elements |
| 4 |
Granulating process |
Feeding machine |
Feed mixed powder into granulator evenly |
| Granulator |
Make mixed powder into fertilizer granules |
| 5 |
Screening process |
Screener |
Screen out required size from fertilizer granules |
| 6 |
Coating process |
Coating machine |
Coat color, anti-blocking agent, microelements etc on fertilizer granules |
| 7 |
Packaging process |
Air compressor |
Generate power to packaging machine |
| Packaging machine |
Package fertilizer granules into bags |
Advantages In NPK Compound Fertilizer Making Production Line
1. Raw material widely,the production formula easy to operate,used to produce high,mediumand low concentration of compound fertilizer.
2. Low investment cost,good production effect,convenient operation and maintenance.
3. The production technology is mature,equipments running stable and high efficiency.
Features of NPK Fertilizer Production Line
1, Simple machine structure
2, Easy operation and maintenance
3, Once forming,no drying process,normal temperature granulating
4. Double shaft power output, each shaft through coupling to drive its roller to do synchronous work in opposite direction, granule forming is better and the strength is higher.
5. The design of contraposition adjustment of ball socket is simple and convenient for the client to adjust by themselves. Provide the drawing of roller adjustment and operation steps.
6. All machines before leave the factory, had carried out the test and trial production by professional workers.
